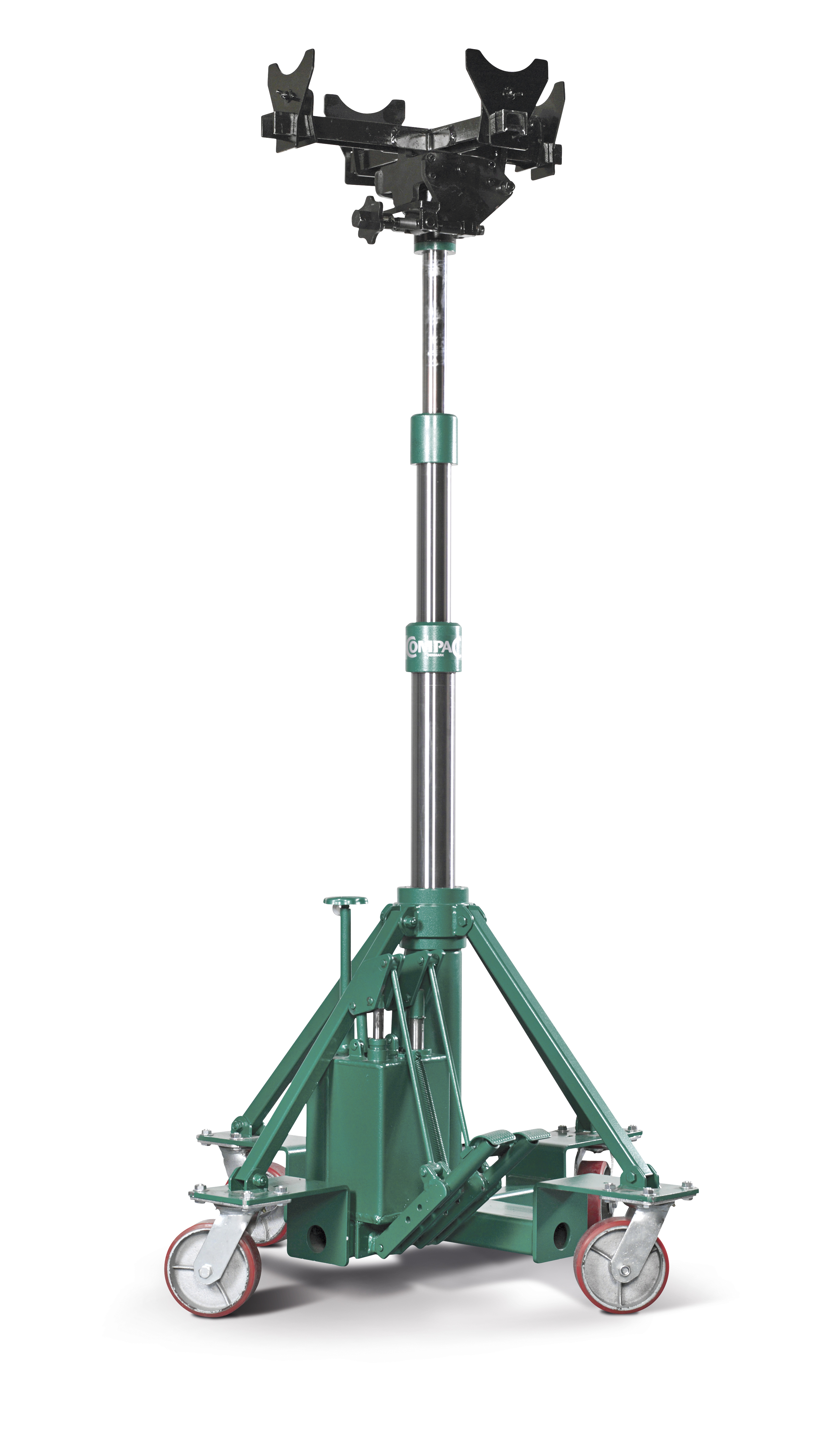

TJ-T 2000
932034
- Ideal for demounting and mounting of truck and bus transmissions.
- Ideal for handling and supporting exhaust systems, fuel tanks and other components.
- Triple stage cylinder for extra low minimum height and extra long stroke.
- Capacity 2000 kg. (1st stage) 1000 kg. (2nd stage) 1000 kg. (3rd stage).
- Lifting height up to 1910 mm.
- Minimum height 960 mm.
- Two speed pump unit for fast approach of the piston to working area.
- Hard chrome pistons.
- Large swivel wheels for easy maneuverability.
- The black transmission tool is NOT included as standard. (Accessory 939007)
| Capacity (kg) | 2000 |
|---|---|
| Unit weight (kg) | 106 |
| Height (cm) | 110 |
| Length (cm) | 80 |
| Width (cm) | 120 |
| Quantity pr. pallet | 1 |
| Dimension drawing |
|
|---|---|
| Measurement A | 960 |
| Measurement B | 1320 |
| Measurement B2 | 1600 |
| Measurement B3 | 1910 |
| Measurement C | 1050x1050 |
| Measurement D | 150 |
