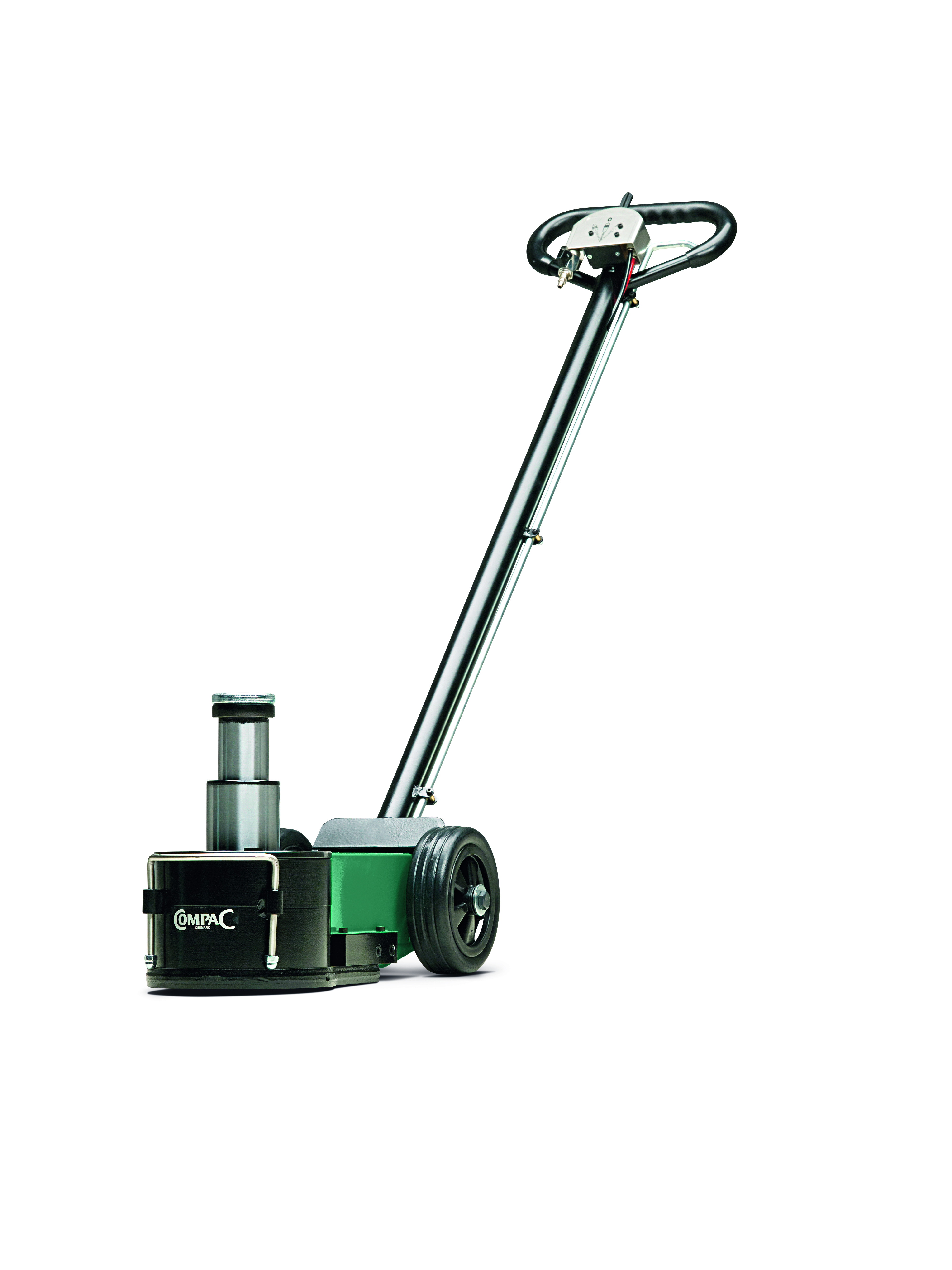

A4020-C
912117-1
- Min. height 150 mm.
- Max. height 300 mm.
- Maximum height 500 mm by utilization of the 3 extension.
- Standard extensions: 10, 70 and 120 mm.
- Short design for easy manoeuvrability.
- Long handle for better reach.
| Capacity (T) | 40/20 |
|---|---|
| Unit weight (kg) | 46 |
| Height (cm) | 150 |
| Length (cm) | 55 |
| Width (cm) | 34 |
| Quantity pr. pallet | 6 |
| Dimension drawing |
|
|---|---|
| Measurement A | 150 |
| Measurement B1 | 220 |
| Measurement B2 | 300 |
| Measurement B4 | 500 |
| Measurement C | 495 |
| Measurement D | 168 |
| Measurement E | 310 |
| Measurement F | 1230 |
