15T-C
910083-1
- Ergonomically designed handle for operator comfort.
- Large diameter swivel wheels for easy handling.
- Built-in safety lowering control valve for sage lowering even under maximum load.
- Built-in pressure relief valve prevents overloading.
- Min. Height 200 mm.
- Max. Height 600 mm.

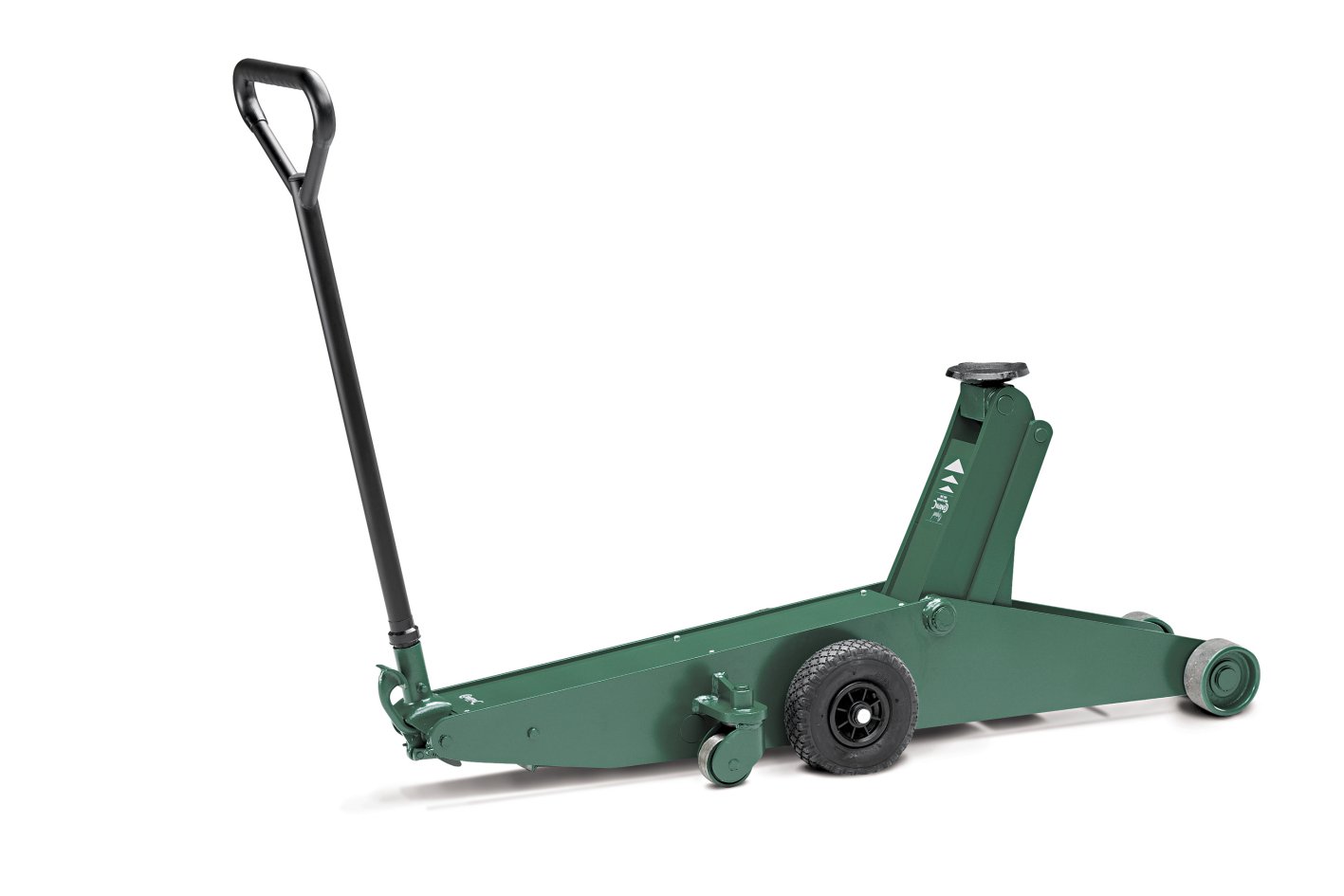

- Please note that the jack is shown with air rubber tires. (Accessory: 060200)
| Capacity (T) | 15 |
|---|---|
| Unit weight (kg) | 169 |
| Height (cm) | 32.5 |
| Length (cm) | 179 |
| Width (cm) | 47.5 |
| Quantity pr. pallet | 6 |
| Dimension drawing |
|
|---|---|
| Measurement A | 200 |
| Measurement B | 600 |
| Measurement C | 1790 |
| Measurement D | 325 |
| Measurement E | 475 |
| Measurement F | 1045 |
