10T-C
910065-1
- Long reach chassis improves acces to lifting points deep under trucks.
- Ergonomically designed handle for operator comfort.
- Chassis height 225 mm.
- Min. Height 165 mm.
- Max. Height 580 mm.
- Large diameter swivel wheels for easy handling.
- Quick approach foot pedal.
- Built-in safety lowering control valve for safe lowering even under maximum load.

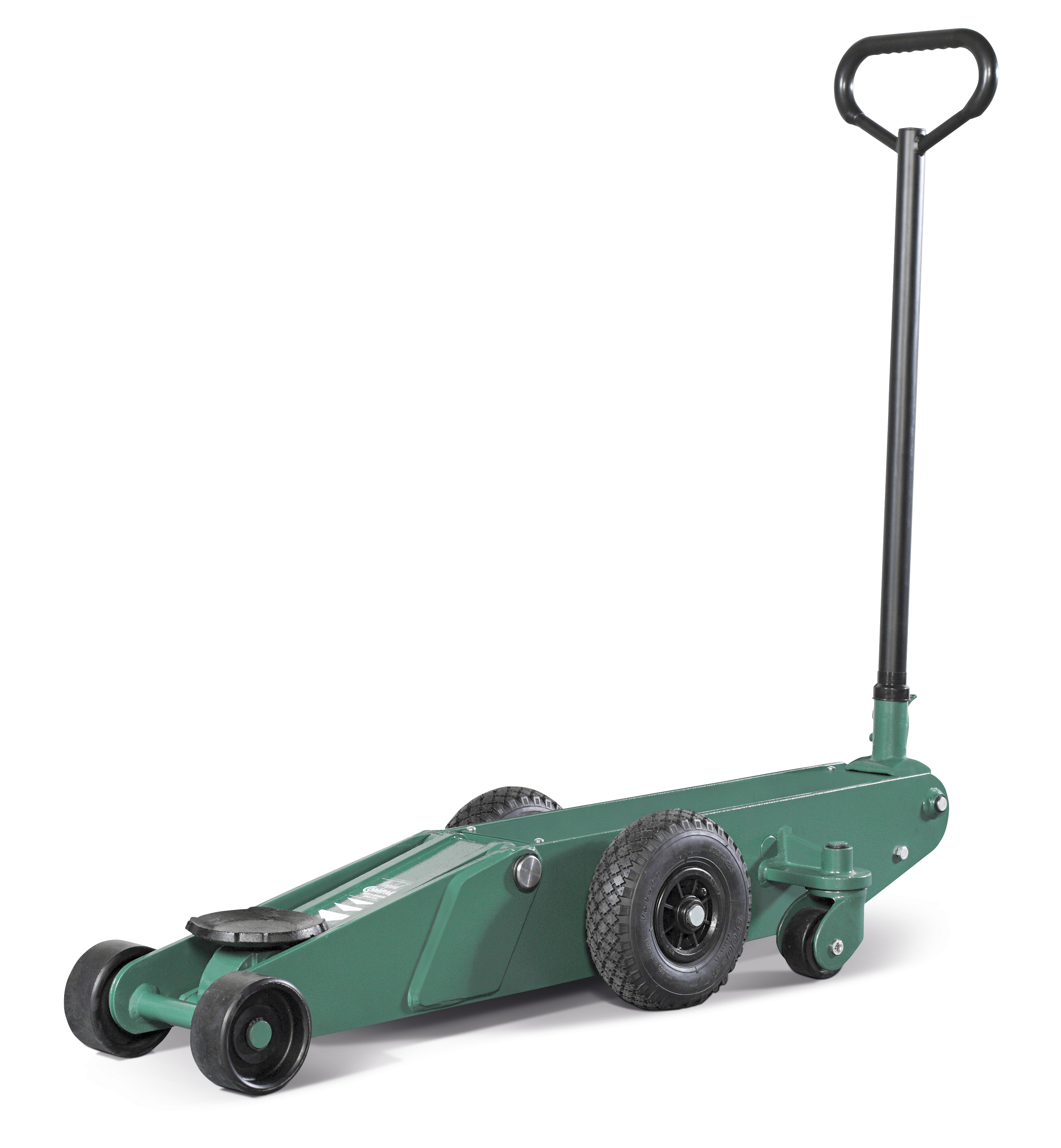

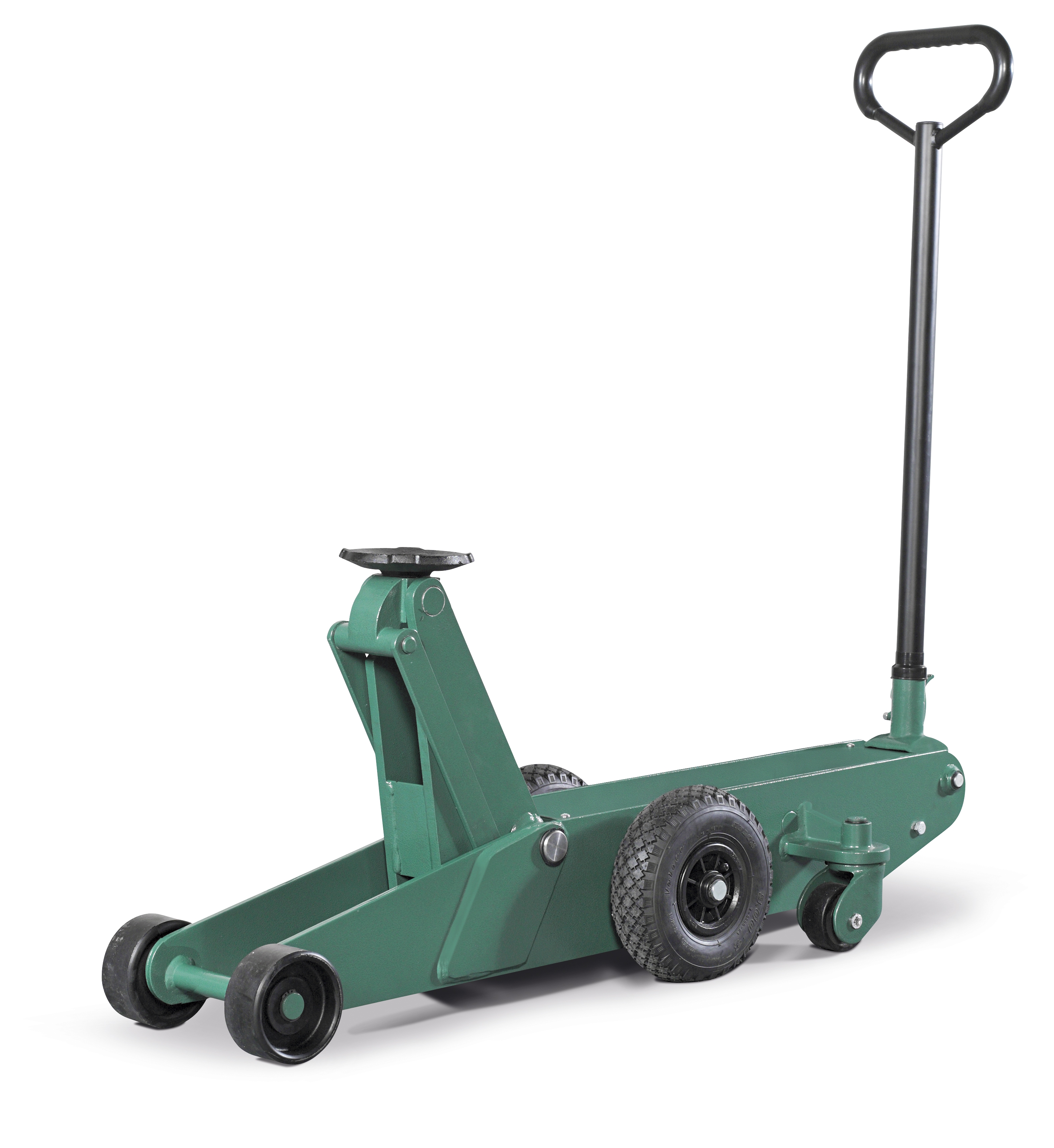

- Please note that the jack is shown with air rubber tires. (Accessory: 060200)
| Capacity (T) | 10 |
|---|---|
| Unit weight (kg) | 110 |
| Height (cm) | 28 |
| Length (cm) | 150 |
| Width (cm) | 50 |
| Quantity pr. pallet | 14 |
| Dimension drawing |
|
|---|---|
| Measurement A | 165 |
| Measurement B | 580 |
| Measurement C | 1410 |
| Measurement D | 225 |
| Measurement E | 435 |
| Measurement F | 1045 |
